PergoRetract

£10,400.00 – £22,950.00

Colour Options

RAL 7016 Anthracite Grey

RAL 9016 Traffic White

RAL 7016 Anthracite Grey & RAL 9016 Traffic White

The PergoDelux allows you to appreciate your outdoor space no matter what the British weather has to bring. With a design that's very in fashion nowadays, the louvered pergola will most certainly enhance the look and feel of your outdoor space whilst giving you plenty of options for relaxing outdoors. The shuttered roof is fully motorised allowing you to let sunlight in or out as required. The switch box that controls the LED lights and motorised louvers can be positioned where it's most convenient for you. The robustly made component parts are specially designed to withstand all types of weather from high winds to direct sunlight without degrading or failing over time. There is also guttering running on all sides of the top frame pieces with drainage holes to let rainwater drain off quickly and easily. The feet also include sturdy base plates allowing it to be anchored to solid flat surfaces like patios and decking.Drainage System Water is channeled away directly through the internal drain pipe to the ground or connecting the underground drainage system.

Louvers are designed such that they will interlock to keep out the weather.

Tilt the louvers to block the sun but allow the air ventilation via the opening at the louvers.

Rain and sun protection can be adjusted when open louvers at a different desired angle.

In the event of rain, our louvered pergolas can close to provide complete protection. Water is channeled away directly through the internal drain hidden inside the post.

Optional Items

Motorized Side Screen

Included

Sliding Glass Doors

Optional

Lighting Options

Included

Electric Heater

Optional

Design Options

Louvered Pergola - Blades perpendicular to the wall

TYPE 1

Free-standing

Blades perpendicular to the wall

TYPE 2

Wall-Mounted

Blades perpendicular to the wall

TYPE 3

Wall-Mounted

Blades parallel to the wall

TYPE 4

Customized Design

Systems / Data		PergoDelux

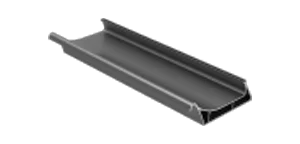

Blade	Type	Flat Blade
	Specification	219 x 65.9 x 1.8mm
	Reference
Post	Specification	150 x 150 x 2.0mm
Post	Reference

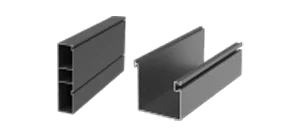

Beam & Gutter	Specification	35 x 8.5 x 2.5mm
Beam & Gutter	Reference
Maximum Range		Width 4.5 x Projection 6m
Operation	Motorised	✓
Operation	Manual	✖
Colour Options		AL9016 Traffic White, RAL7016 Anthracite Grey
Motor	Voltage	110V or 220V
Motor	Waterproof Level	IP67
Max Sqm For 1 Motor		40㎡
Remote Control		Radio Frequency
Design	Free Standing	✓
Design	Free Standing & Wall mounted	✖
Hidden Motor Design		✓
Beam for Fan		✖
LED Strip Light	Colour	White or Yellow
LED Strip Light	Position	Blade
RGB Strip Light	Adds-on	✓
RGB Strip Light	Position	Outer Gutter Perimeter
Wind Resistant (estimated)		120km/h
Snow Loading (estimated)		100kg/㎡
Warranty (structure)		10

Colour	Grey, Grey & White, White, Black
Size	4x4m, 5×3.5m, 6x4m, 7×4.5m, 8×3.5m
Layout	Free Standing, Wall Mounted
Heater	No Heater, 1 Heater, 2 Heaters
Pro Heating	No Pro Heater, 1 Pro Heater, 2 Pro Heaters
Side Screen	No Side Screen, Manual Grey, Manual White
Louver Light Colour	Cool, Warm
Installation	None, Yes
