BBQ Pods

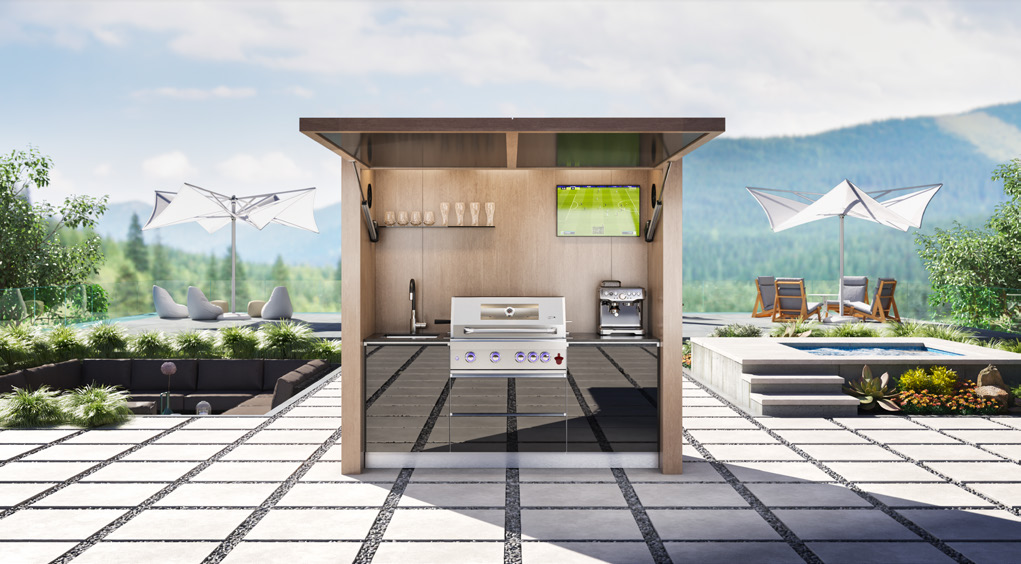

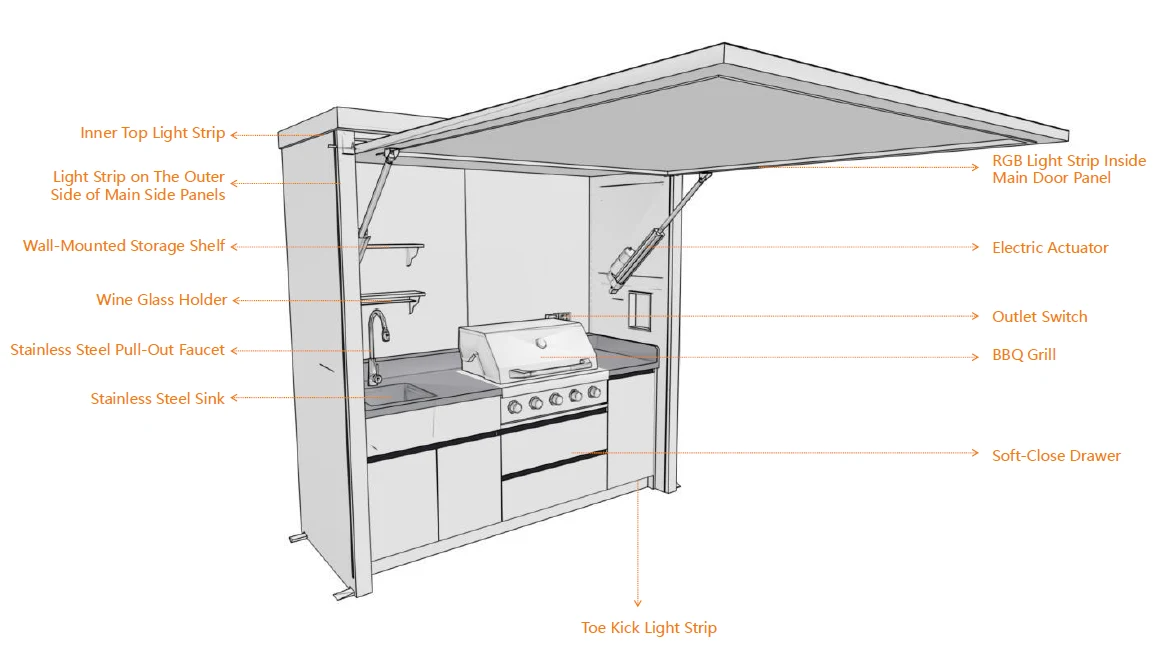

Mini

Category	No.	Configuration Name	Specification	Remarks

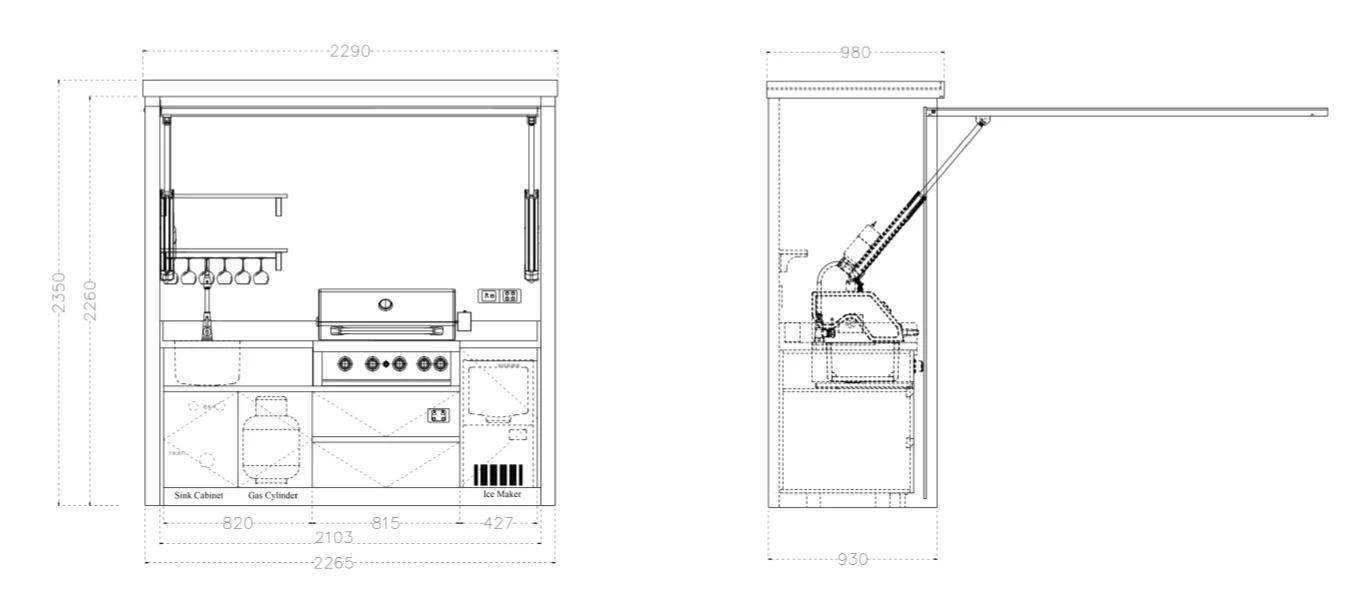

Size Configuration	1	BBQ Pod Outer Dimensions	L2290mm × W980mm × H2350mm
	2	Door Opening Angle	90°
	3	Total Open Dimensions	L2290mm x W3100mm × H2350mm
Basic Configuration	4	Distribution Box	Rear - right side
	5	BBQ Pod Door	Electric control	Remote Control
	6	Material	Stainless Steel
	7	Stainless Steel Sink	AF - 4541
	8	Faucet	AF - C03 Stainless Steel Pull - Out Faucet
	9	Drawer	Imported Blum

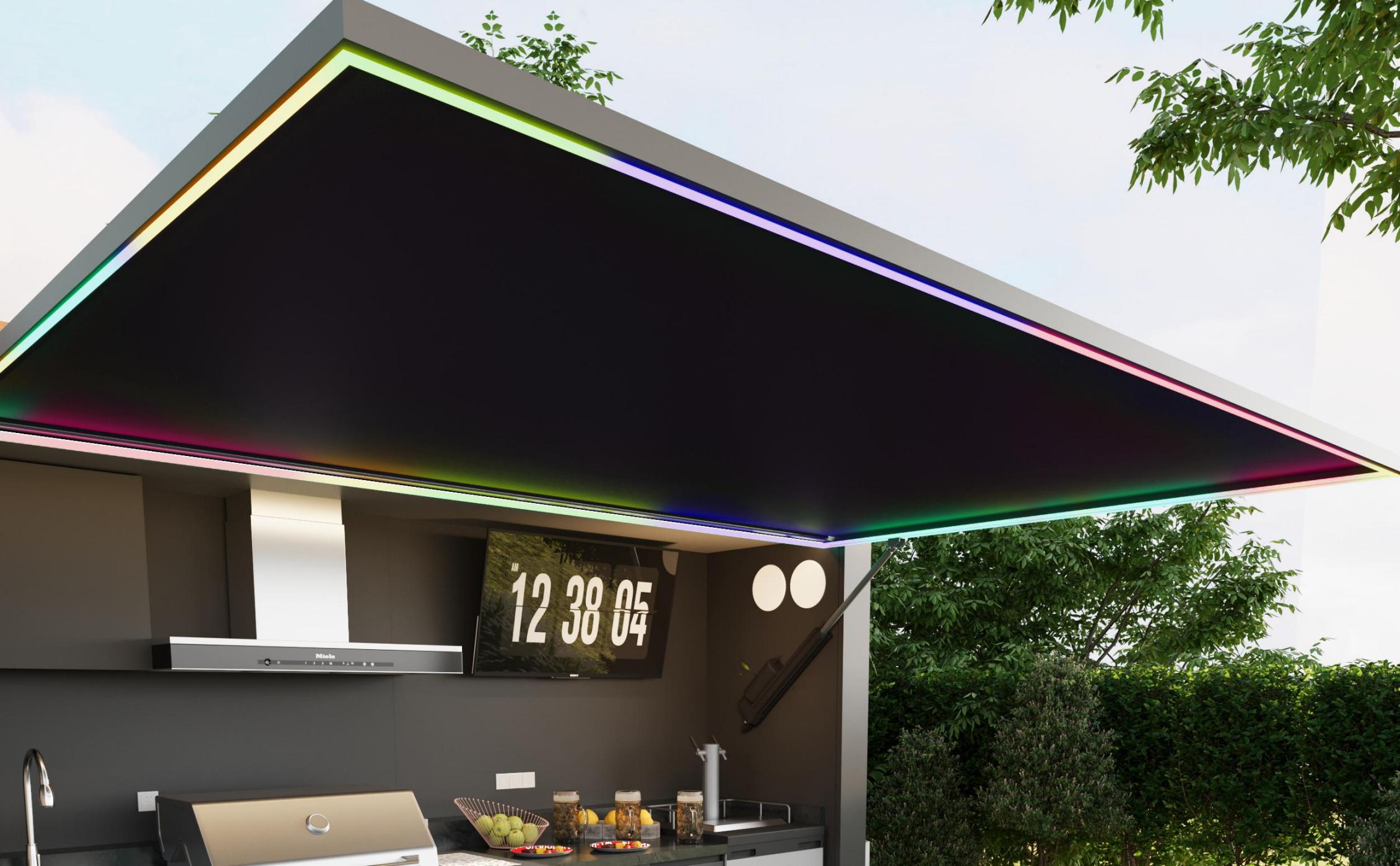

	10	Door Panel RGB Light Strip	24V Adjustable RGB Lighting	Remote Control

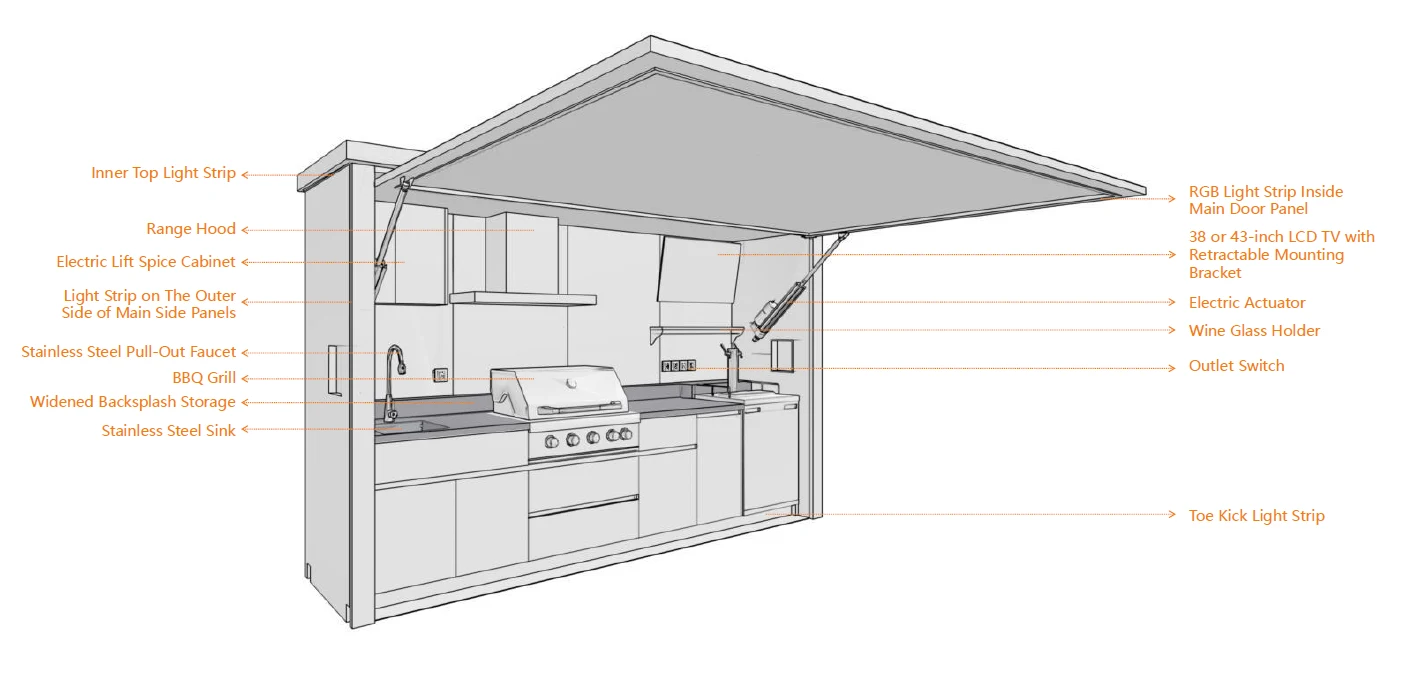

	11	Lighting Function	COB 24V waterproof lighting (Including Two Inner Top Light Strip, Light Strip on the Outer Side of Main Side Panels, and Toe Kick Light Strip)
	12	Exterior Color	Customisable
Customisation Options	13	Cabinets Color	Door Panel color customisable
	14	Interior Worktop Material	Stainless steel / Sintered Stone
	15	Wine Glass Holder	Optional
	16	Wall - mounted Storage Shelf	Customisable levels

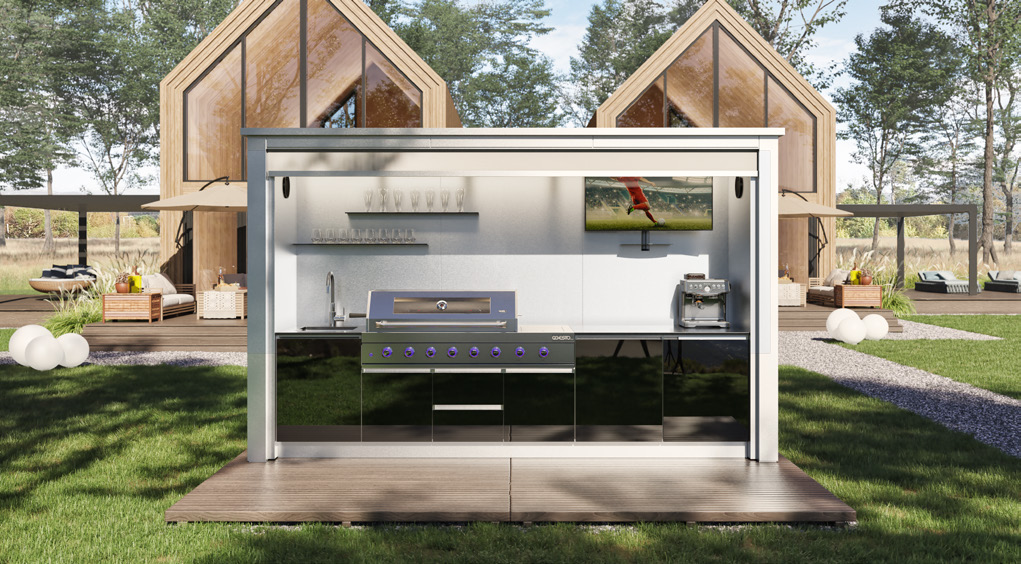

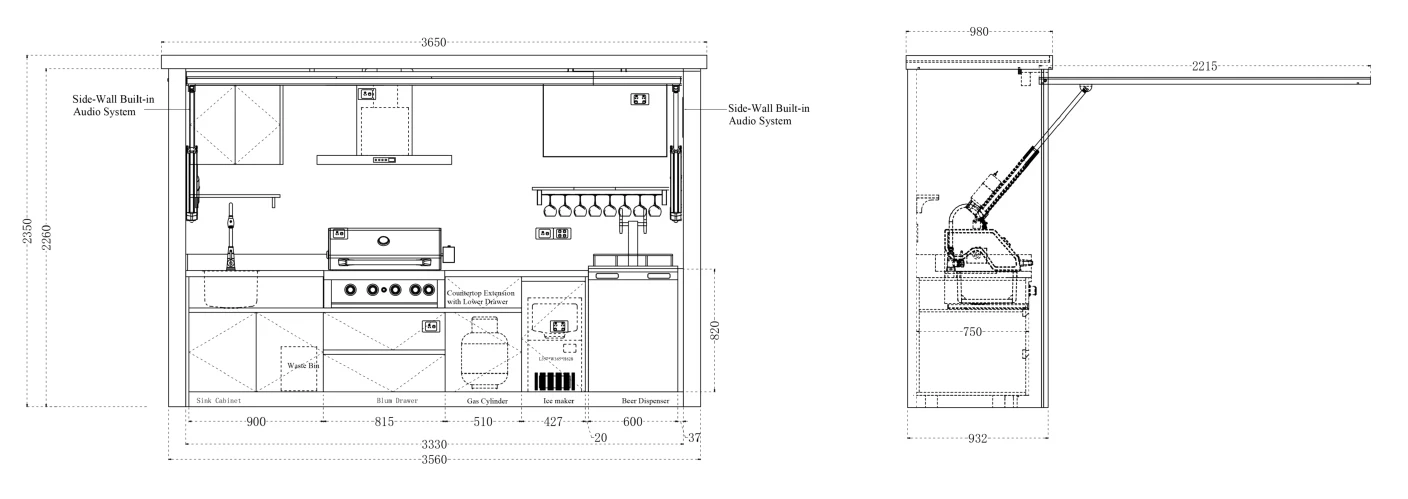

Standard

Category	No.	Configuration Name	Specification	Remarks
Size Configuration	1	BBQ Pod Outer Dimensions	L3650mm × W980mm × H2350mm
	2	Door Opening Angle	90°
	3	Total Open Dimensions	L3650mm x W3100mm × H2350mm
Basic Configuration	4	Distribution Box	Rear - right side
	5	BBQ Pod Door	Electric control	Remote Control
	6	Material	Stainless Steel
	7	Stainless Steel Sink	AF - 4541
	8	Faucet	AF - C03 Stainless Steel Pull - Out Faucet
	9	Worktop Extension	400 x 400 mm
	10	Waste Bin	240 x 340 mm
	11	Drawer	Imported Blum
	12	Electric Lift Spice Cabinet	Electric control
	13	Door Panel RGB Light Strip	24V Adjustable RGB Lighting	Remote Control
	14	Lighting Function	COB 24V waterproof lighting (Including Two Inner Top Light Strip, Light Strip on the Outer Side of Main Side Panels, and Toe Kick Light Strip)
	15	Exterior Color	Color customisable
Customisation Options	16	Cabinets Color	Door Panel color customisable
	17	Interior Worktop Material	Stainless steel / Sintered Stone
	18	Wine Glass Holder	Optional
	19	Wall - mounted Storage Shelf	Adjustable Levels

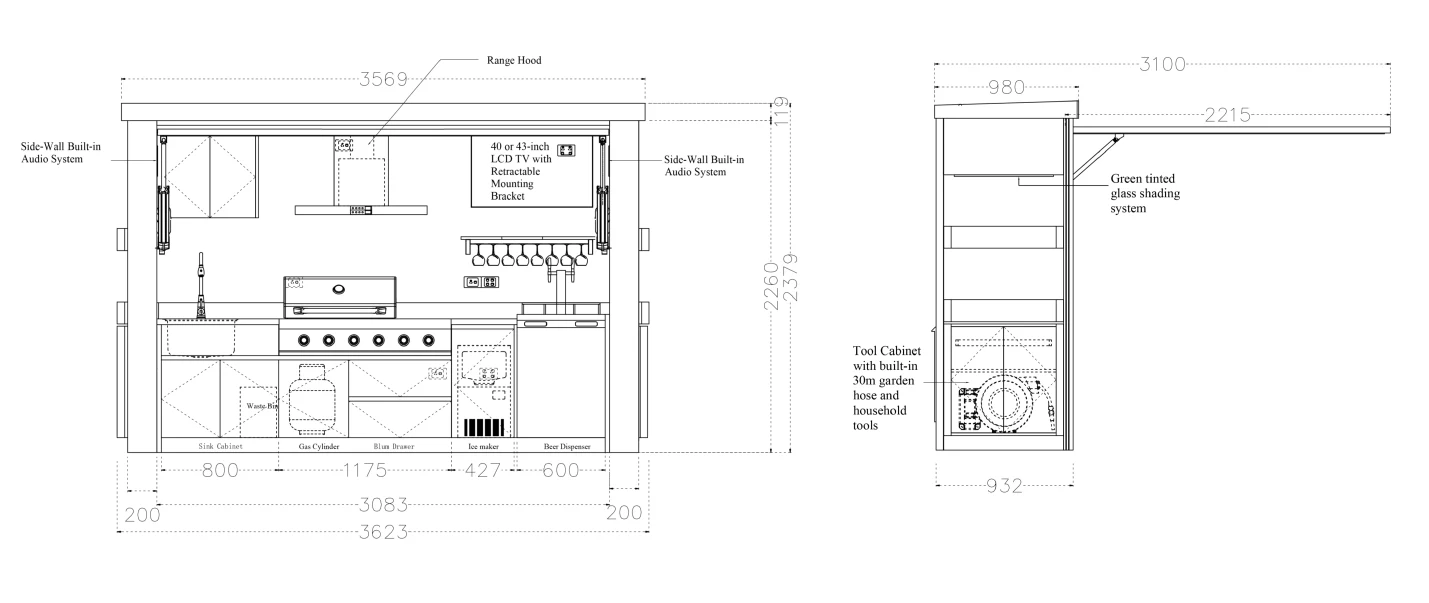

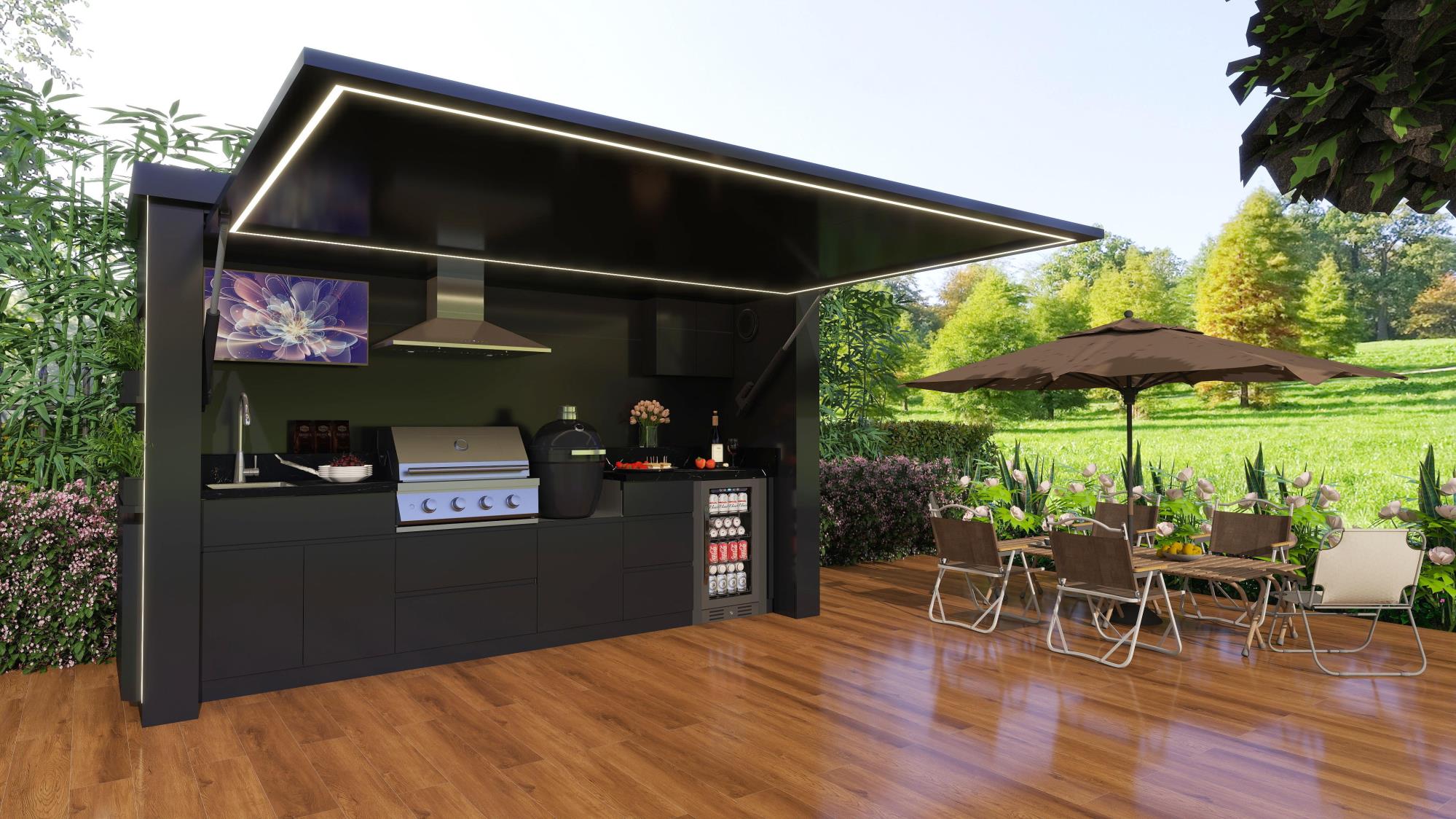

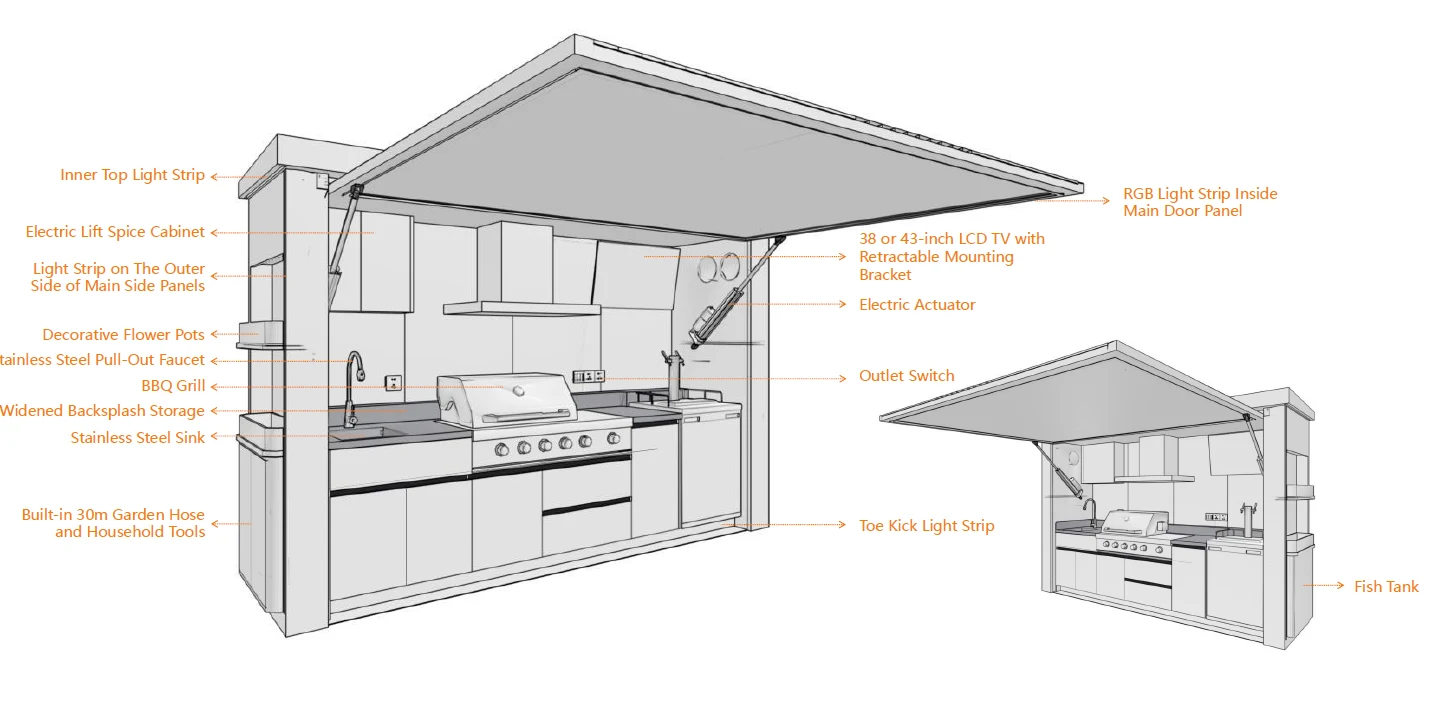

Intelligent

Category	No.	Configuration Name	Specification	Remarks
Size Configuration	1	BBQ Pod Outer Dimensions	L3623mm × W980mm × H2379mm
	2	Door Opening Angle	90°
	3	Total Open Dimensions	L3623mm x W3100mm × H2379mm
Basic Configuration	4	Distribution Box	Rear - right side
	5	BBQ Pod Door	Electric control	Voice / Remote / App Control
	6	Material	Stainless Steel
	7	Stainless Steel Sink	AF - 4541
	8	Faucet	AF - C03 Stainless Steel Pull - Out Faucet
	9	Waste Bin	240 × 340mm
	10	Drawer	Imported Blum
	11	Electric Lift Spice Cabinet	Electric control	Voice / App Control
	12	Door Panel RGB Light Strip	24V adjustable color lighting	Voice / Remote / App Control
	13	Lighting Function	COB 24V waterproof lighting (Including Two Inner Top Light Strip, Light Strip on the Outer Side of Main Side Panels, and Toe Kick Light Strip )	Voice / App Control

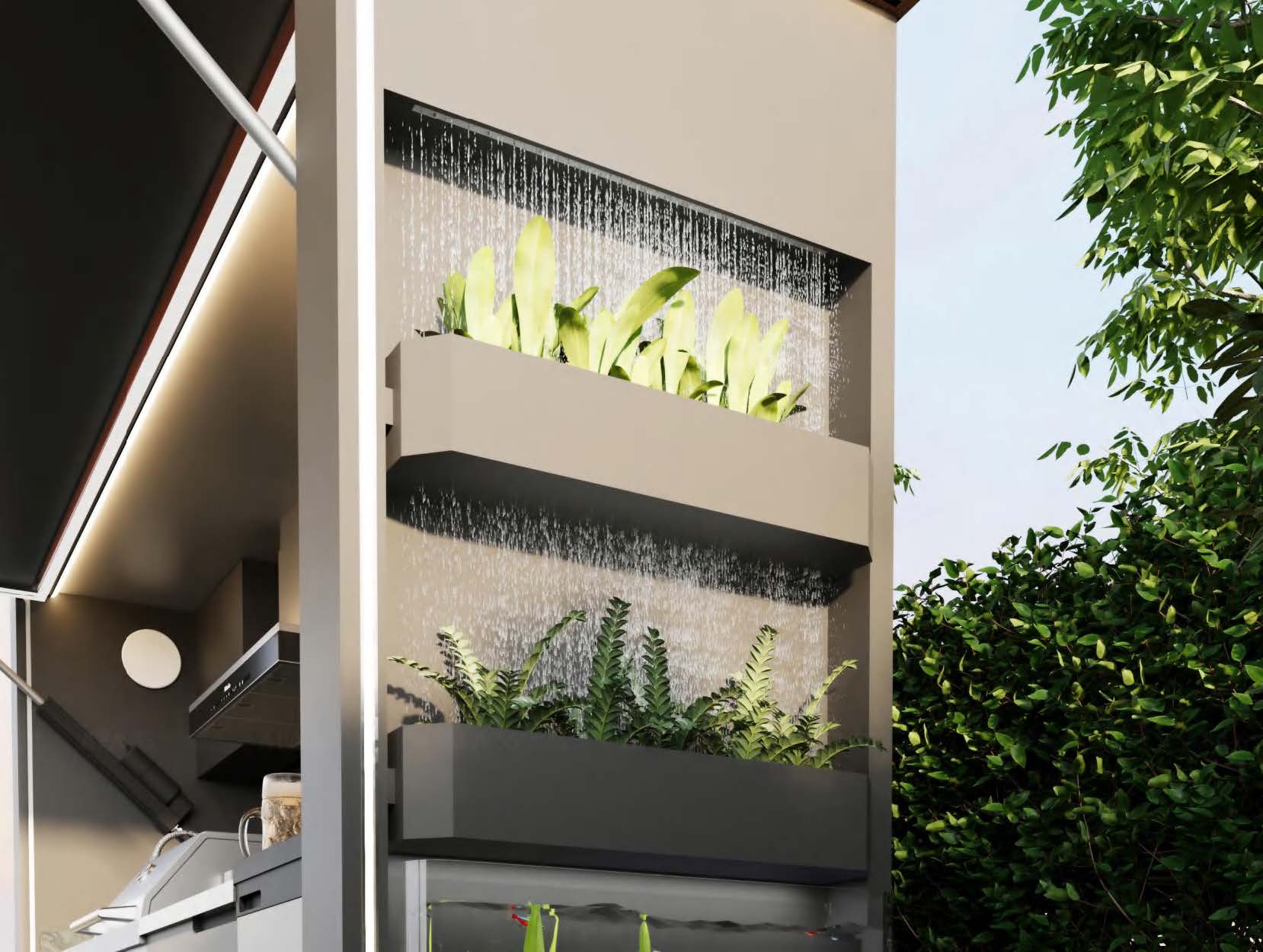

Upgraded Configuration	14	Upper Side Panels	Decorative flower pots and Green tinted glass shading system

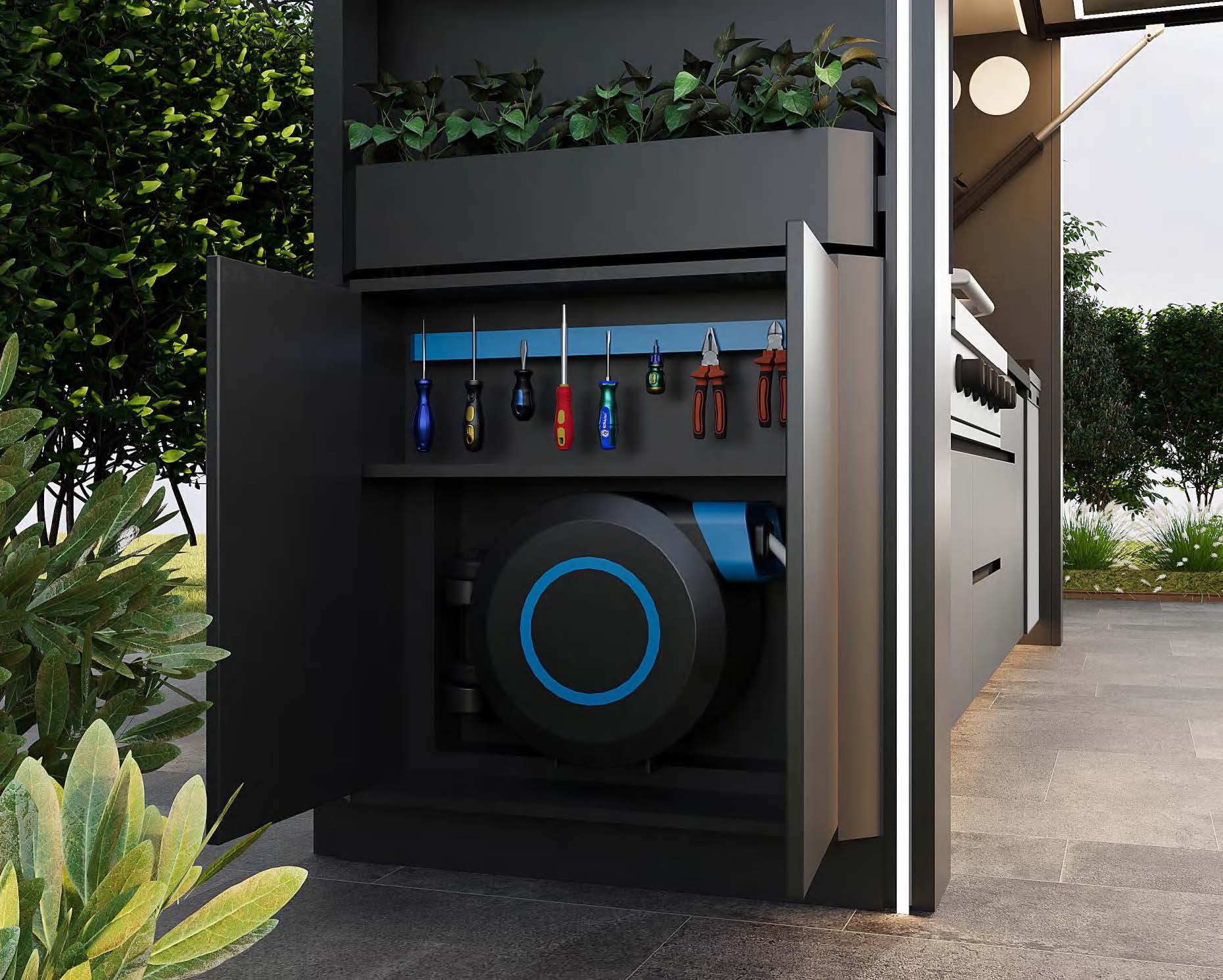

	15	Tool Cabinet (Lower Side Panels)	Built-in 30m garden hose and household tools

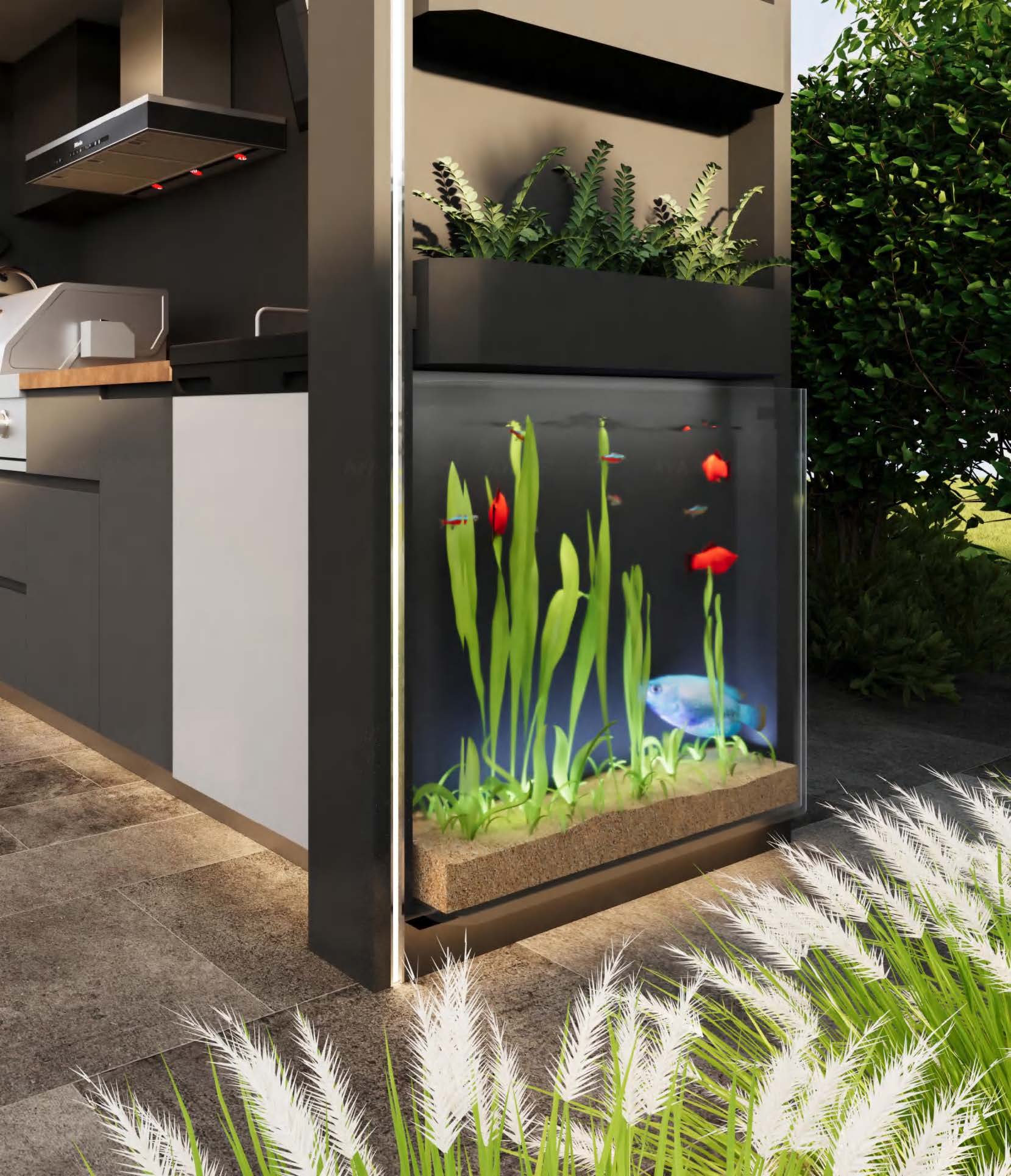

	16	Fish Tank (Lower Side Panels)	Glass / Acrylic
	17	Smart Control System	Centralized system with voice control	Voice / App Control
Customisation Options	18	Door Material	Special flame - retardant wood
	19	Exterior Color	Color customisable
	20	Cabinets Color	Door Panel color customisable
	21	Interior Worktop Material	Stainless steel / Sintered Stone
	22	Wine Glass Holder	Optional
	23	Wall - mounted Storage Shelf	Customisable levels

Stainless Steel Worktops & Sintered Stone Worktops

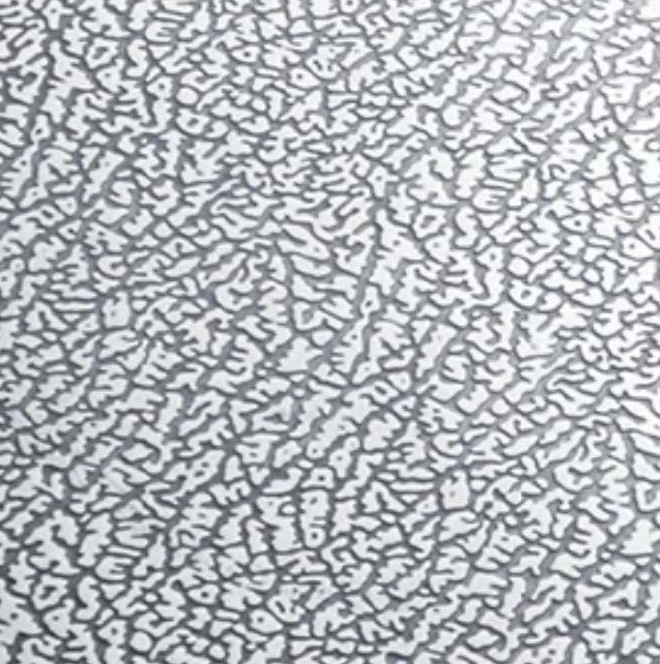

SUS304 Stainless Steel Worktop (Tree Bark and Rhino Skin）

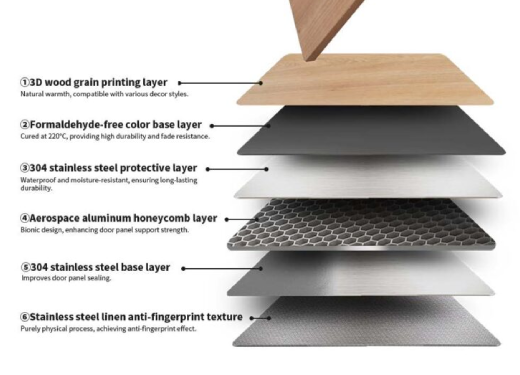

Stainless Steel Door Panels

One door panel, 6 layer structure. Comparable to automotive paint, cured at 220°C in an environmentally friendly baking process.

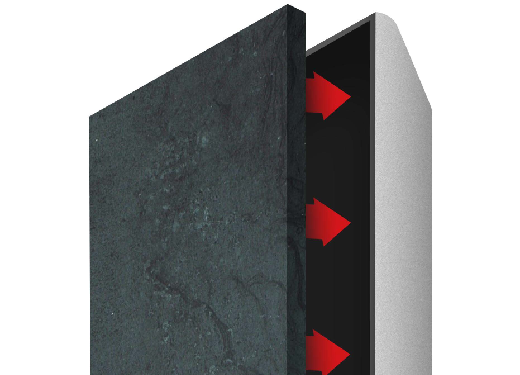

Sintered Stone Door Panels

We expertly combine sintered stone with stainless steel, creating a sleek, seamless design where the stone elegantly integrates into the molded door. The result is a striking, durable finish that elevates both aesthetics and functionality, crafted with precision for lasting beauty.

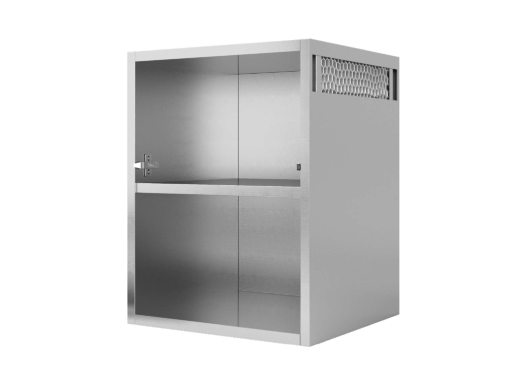

Stainless Steel Cabinet

Durable and pressure-resistant, this cabinet is built with an internal stainless steel frame for reinforcement. Screws fasten securely without loosening or stripping. This is a kitchen cabinet that can last for 50 years.

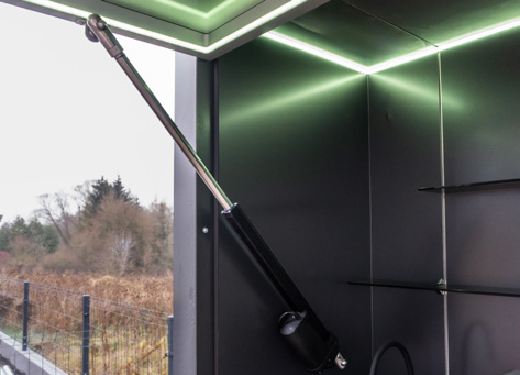

Heavy Duty Acutators

Each of these actuators can lift more than 700 kg, meaning the pair can lift an impressive 1,400 kg. These powerful actuators easily lift a gate weighing 80 kg, offering not only performance, but also exceptional safety.

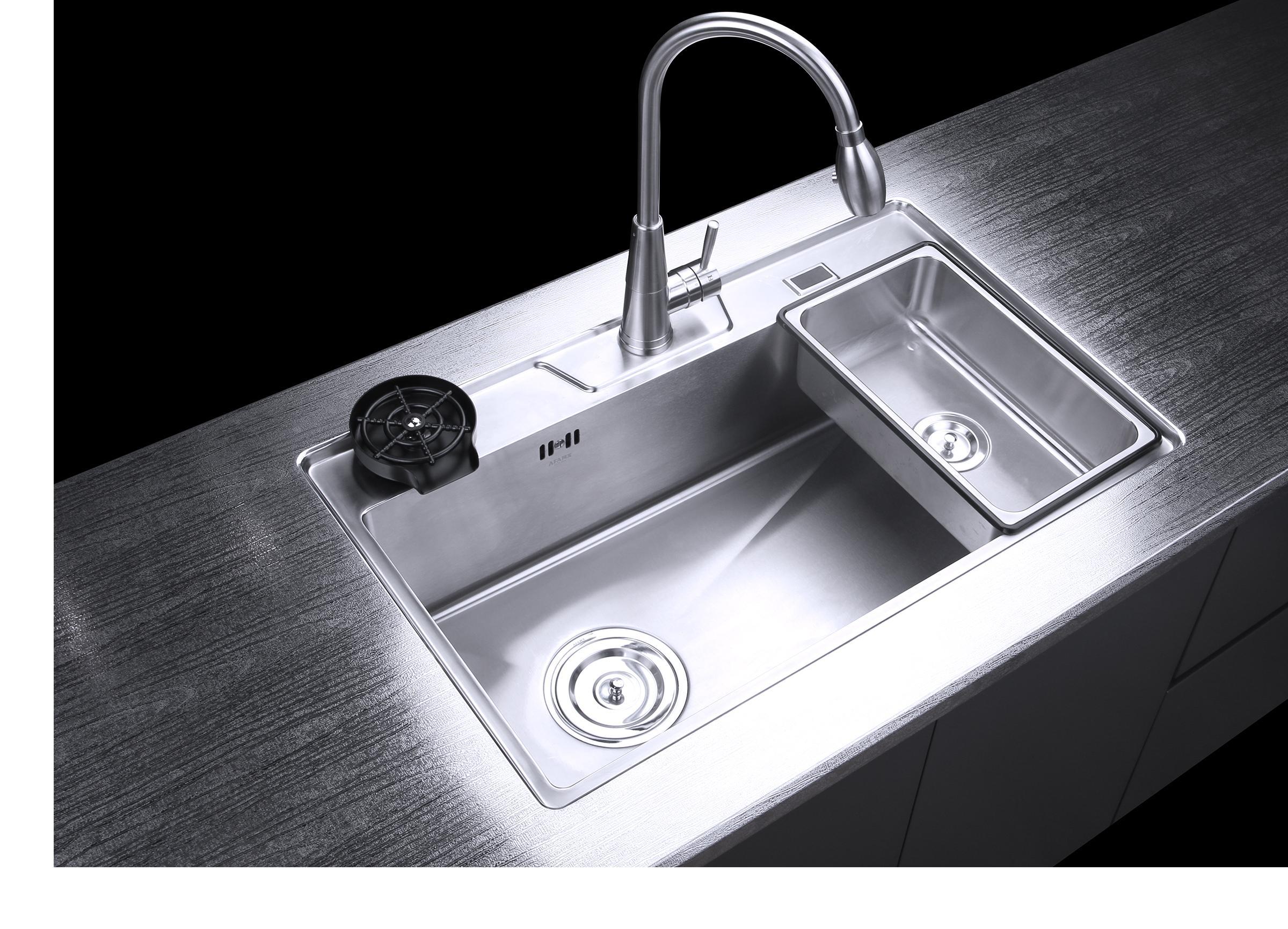

Stainless Steel Sinks

Elegant under-counter sink made of durable 304 stainless steel, weather-resistant for longevity. The robust construction of this sink guarantees hardness, rigidity and excellent workmanship. Available at 40 x 40 cm and 60 x 40cm.

BBQ Pods Enquiry

Size (BBQ Pods Only)

Door Panels

Worktops

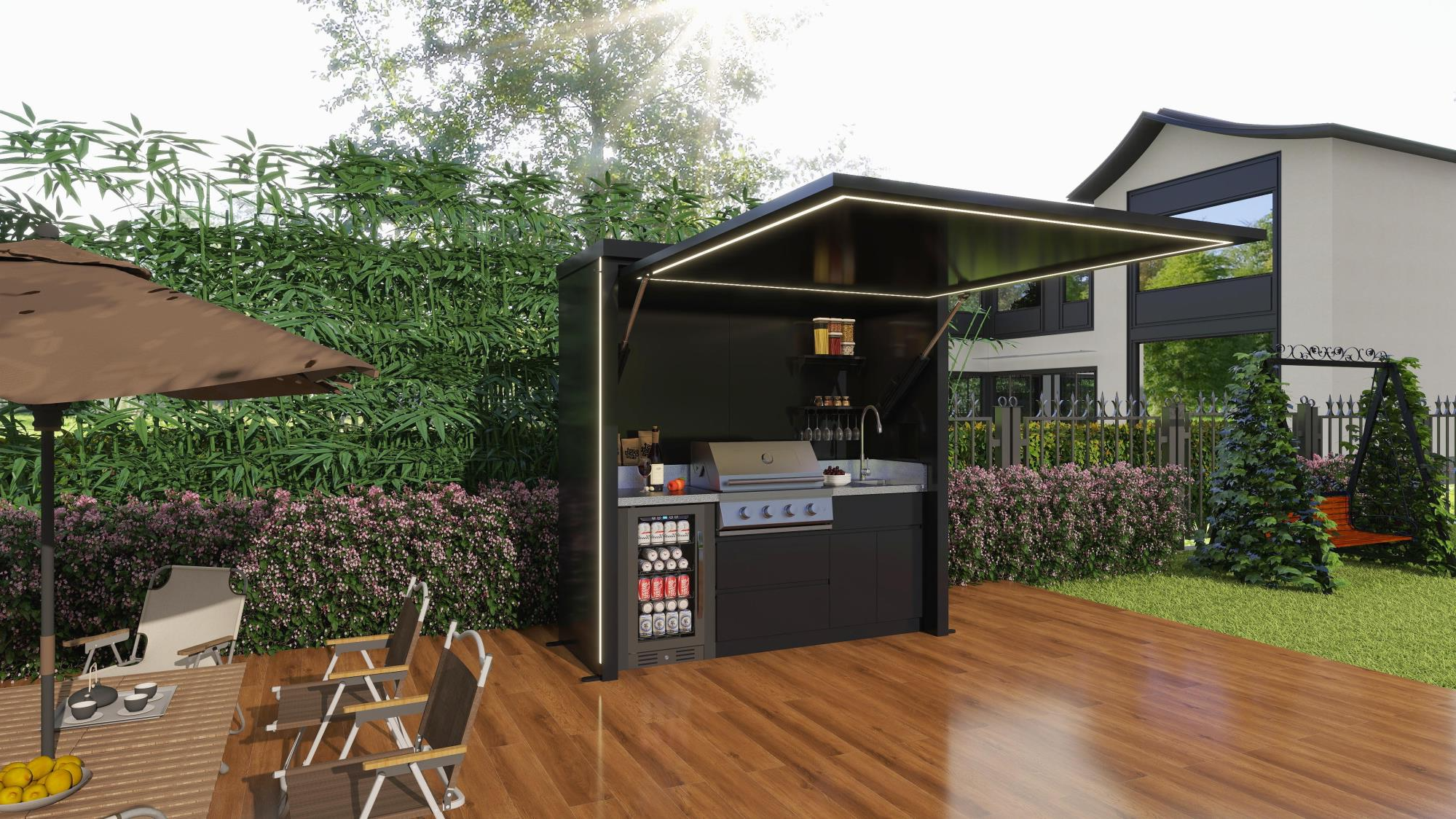

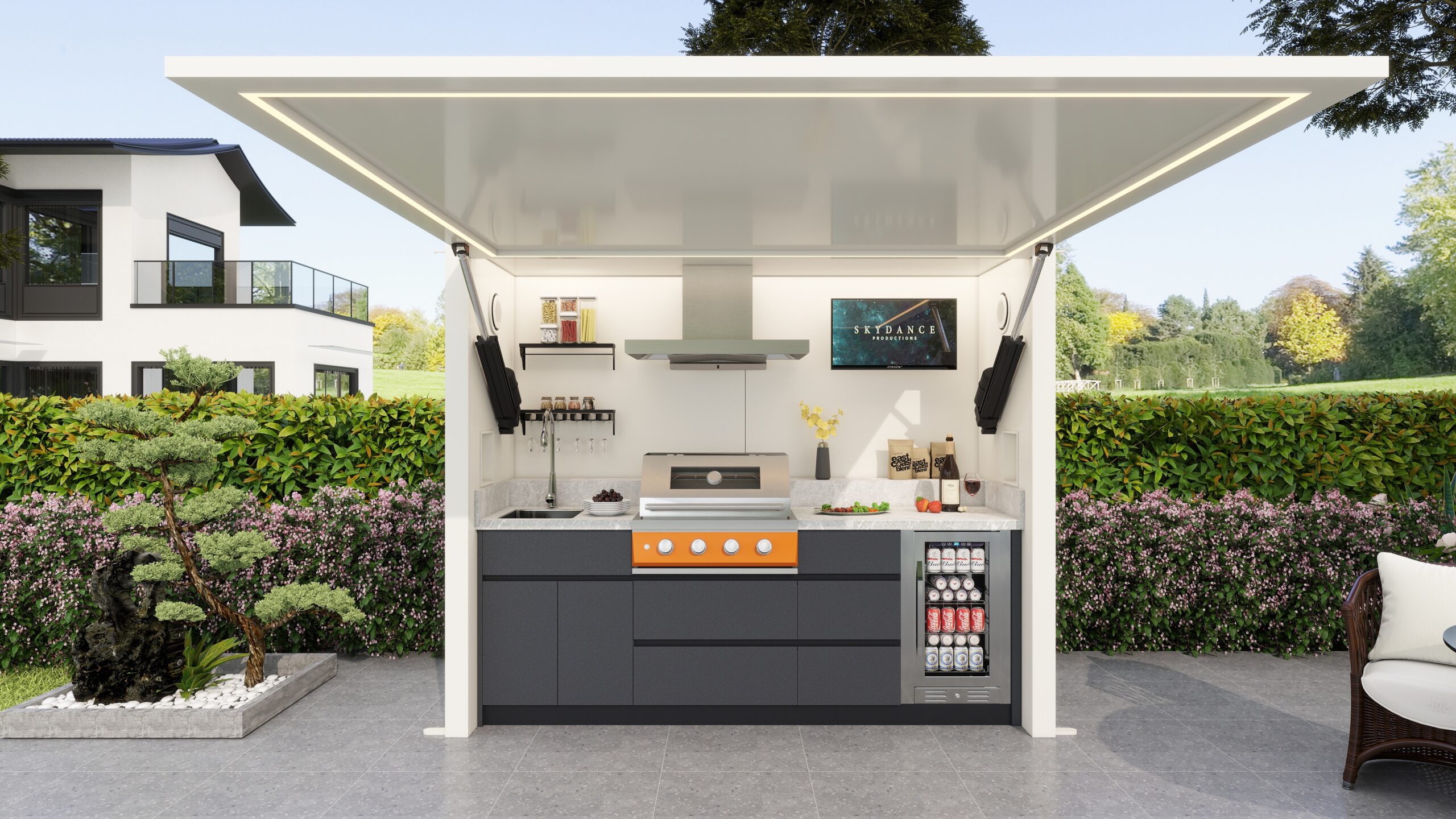

BBQ Pods - Mini Example

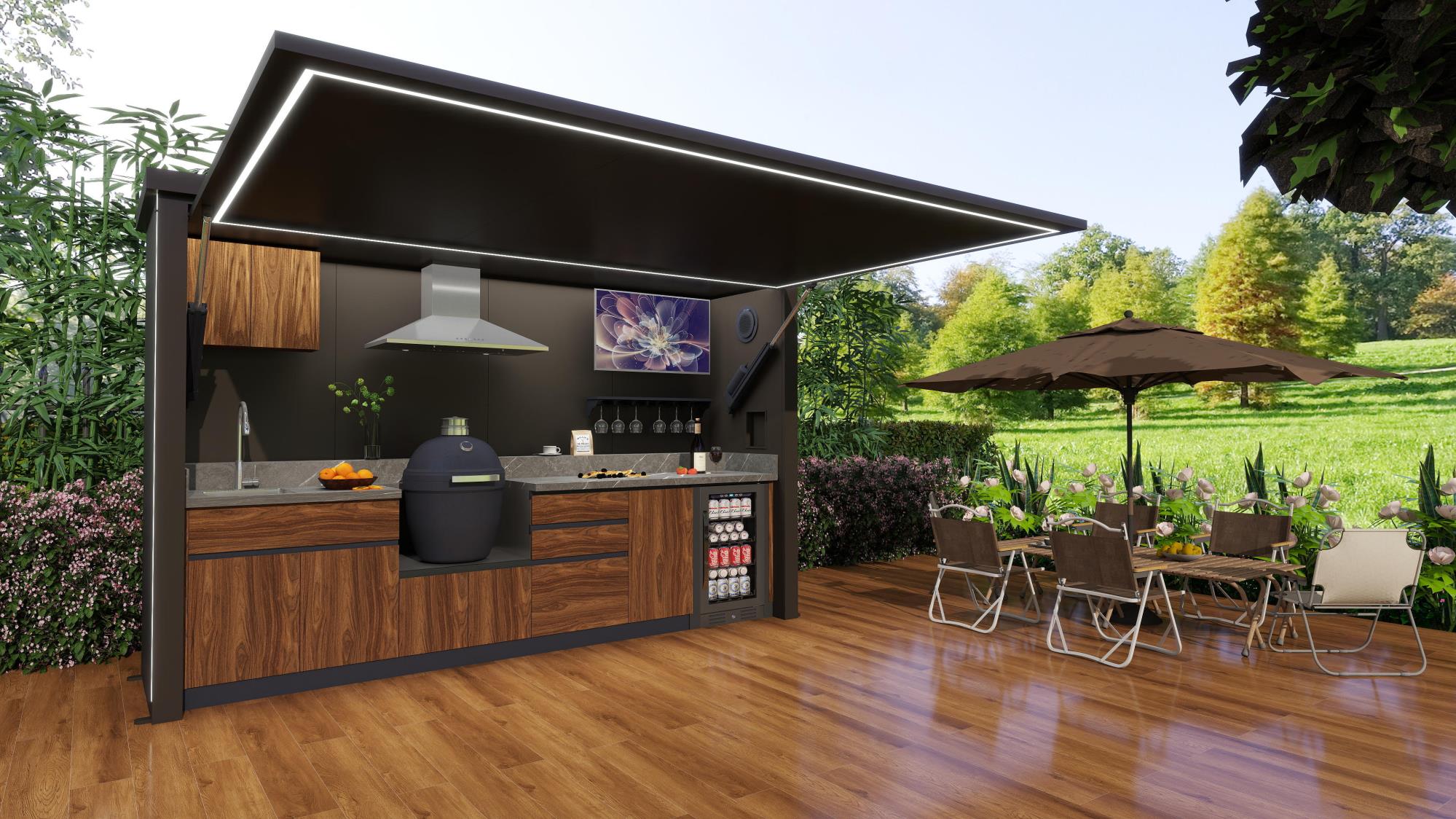

BBQ Pods - Standard Example

BBQ Pods - Intelligent Example

Technical Details

Features
